Questions:

Multiple Choice Question

The following graph shows current versus voltage values of some unknown conductor. What is the resistance of this conductor?

(a)

2 ohm

(b)

4 ohm

(c)

8 ohm

(d)

1 ohm

Two wires of A and B with circular cross section made up of the same material with equal lengths. Suppose R_A = 3 R_B, then what is the ratio of radius of wire A to that of B?

(a)

(b)

\(\sqrt3\)

(c)

\(\frac{1}{\sqrt3}\)

(d)

\(\frac{1}{3}\)

There is a current of 1.0 A in the circuit shown below. What is the resistance of P ?

(a)

1.5 Ω

(b)

2.5 Ω

(c)

3.5 Ω

(d)

4.5 Ω

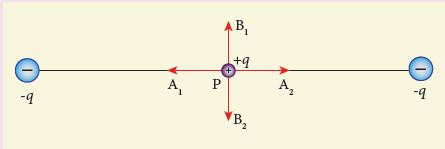

Two identical point charges of magnitude –q are fixed as shown in the figure below. A third charge +q is placed midway between the two charges at the point P. Suppose this charge +q is displaced a small distance from the point P in the directions indicated by the arrows, in which direction(s) will +q be stable with respect to the displacement?

(a)

A₁ and A₂

(b)

B₁ and B₂

(c)

both directions

(d)

No stable

If voltage applied on a capacitor is increased from V to 2V, choose the correct conclusion.

(a)

Q remains the same, C is doubled

(b)

Q is doubled, C doubled

(c)

C remains same, Q doubled

(d)

Both Q and C remain same

A parallel plate capacitor stores a charge Q at a voltage V. Suppose the area of the parallel plate capacitor and the distance between the plates are each doubled then which is the quantity that will change?

(a)

Capacitance

(b)

Charge

(c)

Voltage

(d)

Energy density

In an electromagnetic wave traveling in free space the rms value of the electric field is 3 V m⁻¹. The peak value of the magnetic field is _____.

(a)

1.414 x 10^-8 T

(b)

1.0 x 10^-8 T

(c)

2.828 x 10^-8 T

(d)

2.0 x 10^-8 T

The flux linked with a coil at any instant t is given by \(\Phi\)_B = 10t²− 50t + 250. The induced emf at t = 3s is

(a)

−190 V

(b)

−10 V

(c)

10 V

(d)

190 V

A step-down transformer reduces the supply voltage from 220 V to 11 V and increase the current from 6 A to 100 A. Then its efficiency is

(a)

1.2

(b)

0.83

(c)

0.12

(d)

0.9

10.

An inductor 20 mH, a capacitor 50 μF and a resistor 40Ω are connected in series across a source of emf V = 10 sin 340 t. The power loss in AC circuit is

(a)

0.76 W

(b)

0.89 W

(c)

0.46 W

(d)

0.67 W

11.

\(\frac{20}{\pi^2}H\) inductor is connected to a capacitor of capacitance C. The value of C in order to impart maximum power at 50 Hz is

(a)

50 μF

(b)

0.5 μF

(c)

500 μF

(d)

5 μF

12.

The magnetic field at the centre O of the following current loop is

(a)

\(\frac { { \mu }_{ ° }I }{ 4r } \bigotimes \)

(b)

\(\frac { { \mu }_{ ° }I }{ 4r } \bigodot \)

(c)

\(\frac { { \mu }_{ ° }I }{ 2r } \bigotimes \)

(d)

\(\frac { { \mu }_{ ° }I }{ 2r } \bigodot \)

13.

A thin insulated wire forms a plane spiral of N = 100 tight turns carrying a current I = 8 m A (milli ampere). The radii of inside and outside turns are a = 50 mm and b = 100 mm respectively. The magnetic induction at the centre of the spiral is ______.

(a)

\(5\mu T\)

(b)

\(7\mu T\)

(c)

\(8\mu T\)

(d)

\(10\mu T\)

14.

A wire of length l carrying a current I along the Y direction is kept in a magnetic field is given by \(\vec { B } =\frac { \beta }{ \sqrt { 3 } } =(\hat { i } +\hat { j } +\hat { k } )T.\) The magnitude of Lorentz force acting on the wire is _____.

(a)

\(\sqrt { \frac { 2 }{ { 3 } } } \beta Il\)

(b)

\(\sqrt { \frac { 1 }{ { 3 } } } \beta Il\)

(c)

\(\sqrt { 2 } \beta Il\)

(d)

\(\sqrt { \frac { 1 }{ 2 } } \beta Il\)

15.

The speed of light in an isotropic medium depends on, ______.

(a)

its intensity

(b)

its wavelength

(c)

the nature of propagation

(d)

the motion of the source w.r.t medium

16.

If the velocity and wavelength of light in air is V_a and λ_a and that in water is V_w and λ_w, then the refractive index of water is______.

(a)

\(\frac{V_W}{V_a}\)

(b)

\(\frac{V_a}{V_W}\)

(c)

\(\frac{\lambda_W}{\lambda_a}\)

(d)

\(\frac{{V_a}\lambda_a}{{V_W}\lambda_W}\)

17.

An air bubble in glass slab of refractive index 1.5 (near normal incidence) is 5 cm deep when viewed from one surface and 3 cm deep when viewed from the opposite face. The thickness of the slab is ______.

(a)

8 cm

(b)

10 cm

(c)

12 cm

(d)

16 cm

18.

Two point white dots are 1 mm apart on a black paper. They are viewed by eye of pupil diameter 3 mm approximately. The maximum distance at which these dots can be resolved by the eye is_____. [take wavelength of light, λ = 500 nm]

(a)

1 m

(b)

5 m

(c)

3 m

(d)

6 m

19.

First diffraction minimum due to a single slit of width 1.0 x 10^–5 cm is at 30^o. Then wavelength of light used is,_____.

(a)

400 \(\mathring { A } \)

(b)

500 \(\mathring { A } \)

(c)

600 \(\mathring { A } \)

(d)

700 \(\mathring { A } \)

20.

A light source of wavelength 520 nm emits 1.04 x 10¹⁵photons per second while the second source of 460 nm produces 1.38 x 10¹⁵ photons per second. Then the ratio of power of second source to that of first source is _____.

(a)

1.00

(b)

1.02

(c)

1.5

(d)

0.98

21.

A light of wavelength 500 nm is incident on a sensitive metal plate of photoelectric work function 1.235 eV. The kinetic energy of the photoelectrons emitted is_____. (Take h = 6.6 x 10^–34Js)

(a)

0.58 eV

(b)

2.48 eV

(c)

1.24 eV

(d)

1.16 eV

22.

Emission of electrons by the absorption of heat energy is called ______ emission.

(a)

photoelectric

(b)

field

(c)

thermionic

(d)

secondary

23.

Atomic number of H-like atom with ionization potential 122.4 V for n = 1 is _____.

(a)

(b)

(c)

(d)

24.

The nucleus is approximately spherical in shape. Then the surface area of nucleus having mass number A varies as _____.

(a)

A^2/3

(b)

A^4/3

(c)

A^1/3

(d)

A^5/3

25.

A radioactive nucleus (initial mass number A and atomic number Z) emits two α-particles and 2 positons. The ratio of number of neutrons to that of proton in the final nucleus will be _____.

(a)

\(\frac{A-Z-4}{Z-2}\)

(b)

\(\frac{A-Z-2}{Z-6}\)

(c)

\(\frac{A-Z-4}{Z-6}\)

(d)

\(\frac{A-Z-12}{Z-4}\)

26.

A radiative element has N₀ number of nuclei at t = 0. The number of nuclei remaining after half of a half-life _____.(that is, at time t = \(\frac{1}{2}T_\frac{1}{2}\))

(a)

\(\frac{N_0}{2}\)

(b)

\(\frac{N_0}{\sqrt2}\)

(c)

\(\frac{N_0}{4}\)

(d)

\(\frac{N_0}{8}\)

27.

The given electrical network is equivalent to ______.

(a)

AND gate

(b)

OR gate

(c)

NOR gate

(d)

NOT gate

28.

The variation of frequency of carrier wave with respect to the amplitude of the modulating signal is called ______.

(a)

Amplitude modulation

(b)

Frequency modulation

(c)

Phase modulation

(d)

Pulse width modulation

29.

The blue print for making ultra durable synthetic material is mimicked from _____.

(a)

Lotus leaf

(b)

Morpho butterfly

(c)

Parrot fish

(d)

Peacock feather

30.

The technology used for stopping the brain from processing pain is _____.

(a)

Precision medicine

(b)

Wireless brain sensor

(c)

Virtual reality

(d)

Radiology

Visit QB365-SLMS - https://www.qb365.in/slms/

Answers Key:

Multiple Choice Question

Resistance, \(R=\frac{V}{I}=\frac{4}{2}=2 \ ohm\)

\(R \propto \frac{1}{A}, R \propto \frac{1}{r^2} \)
\(R_A \propto \frac{1}{r_A^2}, R_B \propto \frac{1}{r_B^2} \)
\(\frac{r_A}{r_B}=\left(\frac{R_B}{R_A}\right)^{1 / 2}=\left(\frac{R_B}{3 R_B}\right)^{1 / 2}=\frac{1}{3^{\frac{1}{2}}}=\frac{1}{\sqrt{3}}\)

R_s = 3 + 2.5 + P = 5.5 + P
V = 9 V, I = 1.0 A
R_s = \(\frac{V}{I}=\frac{9}{1}= 9 \Omega\)
∴ 9 = 5.5 + P
∴ P = 9 - 5.5 = 3.5 Ω

The charge + q will be stable between B₁ and B₂ with respect to the displacement.

If voltage is increased from V to 2 V
Then Q₁ = CV
Q₂ = C(2 V) = 2 CV
∴ Q is doubled and C remains same

Energy density u_E \(=\frac{U}{volume}\)
If A' = 2A d ' = 2d
Then V ' = 2A x 2d = 4Ad = 4V
Then volume would be increased. So, energy density will change.

\(B_o=\frac{E_o}{C}=\frac{\sqrt2E_{rms}}{C}\)
\(B_o=\frac{\sqrt2 \times 3}{3 \times10^8}=1.414 \times10^{-8}T\)

\(\phi_B =10 t^2-50 t+250 \)
\(e =\frac{-d \phi_B}{d t} \)
\(=\frac{-d}{d t}\left(10 t^2-50 t+250\right) \)
=-(20 t - 50)
=-20 t + 50
When, t = 3 s, e =-20(3) + 50 = -60 + 50
e = -10V

\(\mathrm{V}_{\mathrm{P}}=220 \mathrm{~V}, \mathrm{~V}_{\mathrm{s}}=11 \mathrm{~V} \)
\(\mathrm{I}_{\mathrm{P}}=6 \mathrm{~A}, \mathrm{I}_{\mathrm{s}}=100 \mathrm{~A} . \)
\(\text {Efficiency }=\frac{\mathrm{V}_{\mathrm{s}} \mathrm{I}_{\mathrm{s}}}{\mathrm{V}_{\mathrm{P}} \mathrm{I}_{\mathrm{P}}} \)
\(=\frac{11 \times 100}{220 \times 6}=\frac{1100}{220 \times 6}=\frac{5}{6}=0.83\)

10.

L = 20 x 10^-3H. C = 50 x 10^-6 F, R= 40Ω
enf V = 10 sin 340 t
\(\therefore V_0=10 \mathrm{~V}, \omega=340 \)
\(X_1=1 \omega^{\prime}=20 \times 10^3 \times 340 \)
\(=6800 \times 10^{-1}=6.8 \Omega \)
\(X_C=\frac{1}{C .} \)
\(=\frac{1}{50 \times 10^{-\alpha} \times 340}=\frac{10^{\circ}}{17000}=\frac{10^{\prime}}{17}=58.823 \Omega \)
\(Z=\sqrt{R^2+\left(X_6-X_1\right)^2} \)
\(=\sqrt{(40)^2+(58.82-6.8)^2} \)
\(=\sqrt{(40)^2+(52.02)^2} \)
\(=65.62 \Omega\)
The peak current in the circuit is,
\(I_0=\frac{V_0}{Z}=\frac{10}{65.62} \)
\(\cos 0=\frac{R}{Z}=\frac{40}{65.62} \)
\(\text{Power loss in A.C. circuit }=V_{r m} 1_{r \rightarrow \infty} \cos \phi \)
\(=\frac{1}{2} V_{\mathrm{o}} I_{\mathrm{c}} \cos \phi \)
\(=\frac{1}{2} \times 10 \times \frac{10}{65.62} \times \frac{40}{65.62}\)
\(\frac{2000}{4305.98}\)
= 0.46 W

11.

\(L=\frac{20}{\pi^2} \mathrm{H}, \mathrm{f}=50 \mathrm{~Hz} \)
\(f=\frac{1}{2 \pi \sqrt{L C}} \)
\(50=\frac{1}{2 \pi \sqrt{\frac{20}{\pi^2} \times C}} \)
\(50=\frac{1}{2 \times \sqrt{20 C}} \)
\(\therefore(50)^2=\frac{1}{4 \times 20 C} \)
\(\therefore C=\frac{1}{2500 \times 4 \times 20}=5 \times 10^{-6}=5 \mu \mathrm{F}\)

12.

Magnetic filed at the centre of a circular
loop, B = \(\frac{μ_oI}{2\pi R}\)
From the figure, R =\(\frac{2r}{\pi}\)
\(\therefore B'=\frac{μ_oI}{2\pi \times\frac{2r}{\pi}}=\frac{μ_oI}{4r}\)
\(B'=\frac { { \mu }_{ ° }I }{ 4r } \bigotimes \)

13.

(b)
\(7\mu T\)

14.

\(\vec { B } =\frac { \beta }{ \sqrt { 3 } } =(\hat { i } +\hat { j } +\hat { k } )T\)
Using an equation,
Lorentz force, \(\vec{F}=Il\hat{j}\times\vec B\)
We can get,
Lorentz force \(F=\sqrt { \frac { 2 }{ { 3 } } } \beta Il\)

15.

v = nג
In an isotropic medium, there is no change in the frequency of the light. So, the speed of light depends on wavelength of light.

16.

Refractive index of water \(=\frac{Velocity \ of \ light \ in \ air(V_s)}{Velocity \ of \ light \ in \ water(V_w)}\)

17.

Apparent depth = 3 + 5 = 8 cm
Real depth = thickness of the slab = t
n = 1.5
\(n=\frac{Real \ depth}{Apparent \ depth}\)
\(\therefore 1.5=\frac{t}{8}\)
t = 1.5 x 8
t = 12 cm

18.

λ = 500 nm = 500 x 10^-9 m
x = 3 mm = 3 x 10^-3 m
a = 1 mm = 1 x 10^-3 m
\(d=\frac{xa}{1.22 \lambda}\)
\(d=\frac{3 \times1\times10^{-6}}{1.22 \times500\times10^{-9}}\)
\(=\frac{3 \times1\times10^{-6}}{6.10 \times 10^{-7}}\)
\(d=\frac{30}{6.1}=5 m\)

19.

(b)
500 \(\mathring { A } \)

20.

\(P =\frac{E}{t}=\frac{n h v}{t}=\frac{n h c}{\lambda t} \Rightarrow P \propto n / t \)
\(\frac{P_1}{P_2} =\frac{1.38 \times 10^{15}}{460} \times \frac{520}{1.04 \times 10^{15}}=1.5\)

21.

\(K .E_{\max } =\mathrm{hv}-\phi \)
\(=\frac{\mathrm{hc}}{\lambda}-\phi \)
\(\mathrm{E} =\frac{6.6 \times 10^{-34} \times 3 \times 10^8-1.235}{500 \times 10^{-9} \times 1.6 \times 10^{-19}} \)
\(=2.475-1.235 \)
\(\text {K. } \mathrm{E}_{\max } =1.24 \mathrm{eV}\)

22.

23.

\(V_{ionisation}=\frac{13.6}{n^2}Z^2 volt\)
\(Z=\sqrt\frac{V\times n^2}{13.6}=\sqrt\frac{122.4 \times I^2}{13.6}=\sqrt{9}=3\)

24.

r ∝ A^1/3
Surface Area = 4πr²
Hence, Surface Area ∝ A^2/3

25.

^A_ZX = 2⁴₂He + 2⁰₁e + ^A_ⁱ2iY
\(\frac{N_i}{Z_i}=\frac{(A_i-Z_i)}{Z_i} =\frac{A-8-(Z-6)}{Z-6}=\frac{A-Z-2}{Z-6}\)

26.

(b)
\(\frac{N_0}{\sqrt2}\)

27.

\(Y_1=\overline{A+B}, y_2=\overline{A+B}=A+B, y=\overline{A+B}\)

28.

(b)
Frequency modulation

29.

Parrot fish's source of bite → mimic → Ultra durable synthetic material.
Lotus leaf surface → SEM → Self Cleaning Process
The scales on the wings of a morpho butterfly → mimic → Interaction of colours.
Peacock feathers → mimic → Glowing in different colours.

30.

Medical virtual reality is effectively used to stop the brain from processing pain and cure soreness.
